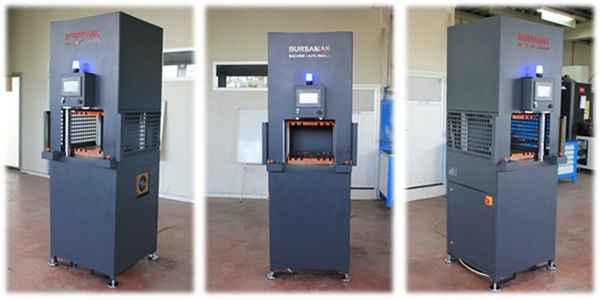

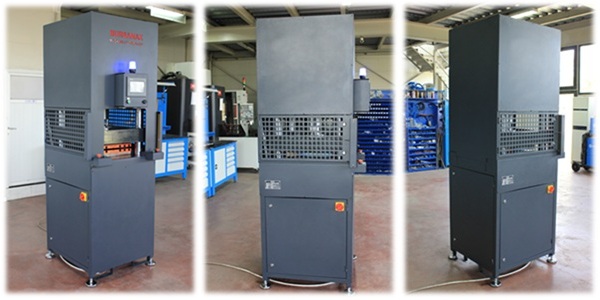

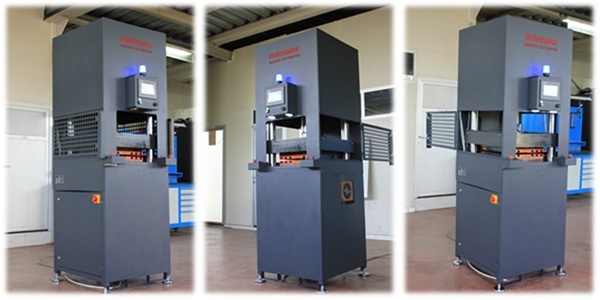

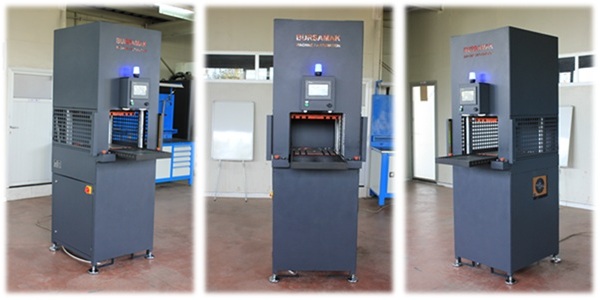

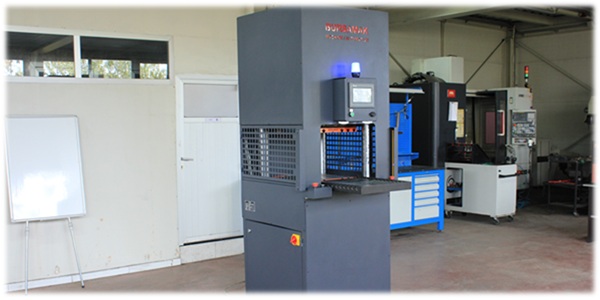

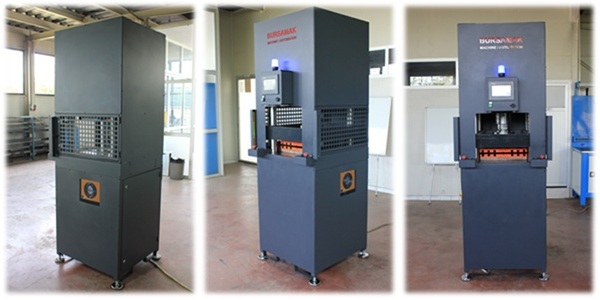

ECO Rubber Press - ECO Silicone Press

Our ECO series presses, developed for rubber and silicone vulcanization, enhance your competitiveness with their affordable investment costs and low energy consumption. As an engineering-based company, we offer real power values through our studies on ideal motor power and heating power. We offer the mechanical strength required for a press operating under harsh conditions during the heating and cooling cycle. Our electrical and electronic systems, meticulously calculated and tested at every point, and measures taken against external factors, ensure long-term use.

Our software helps you maintain consistent production quality with PLC control of all components and continuous background monitoring. Our software constantly monitors all components on the rubber press, notifying the operator of even the slightest problem. Every parameter can be customized, meeting your every need. We offer the opportunity to customize every detail, from the heating chart to the degassing parameters. We prioritize the availability and longevity of every piece of equipment used in our vulcanization press.

ECO Vulcanization Press

MODEL	RP403	RP406	RP410	RP610	RP615	RP620	RP915	RP920	RP925
Table Size (mm)	400 X 400			600 X 500			900 X 600
Compression Force (250 Bar) Tons	40	80	125	125	200	250	200	250	300
Compression Force (200 Bar) Tons	30	60	100	100	150	200	150	200	250
Motor Power (kW)	3	5,5	7,5	7,5	11	15	11	15	18,5
Table Heating Power (kW)	15	15	15	25	25	25	35	35	35
Number of Cylinders	1	1	1	1	2	2	2	2	3
Cylinder Diameter	150	200	250	250	230	250	230	250	230
Stroke	250 mm			300 mm			350 mm
Maximum Clearance	270 mm.			320 mm.			370 mm.
Minimum Clearance	20 mm.			20 mm.			20 mm.
Closing Speed	10 mm/sec.

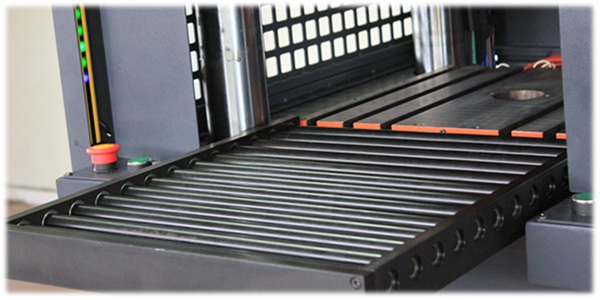

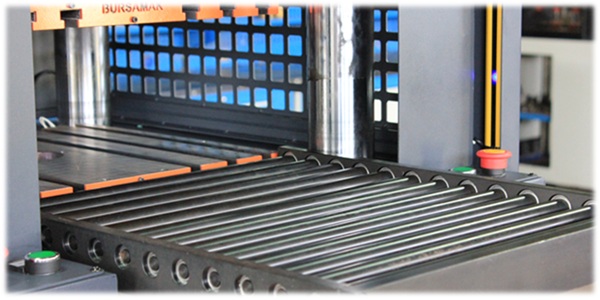

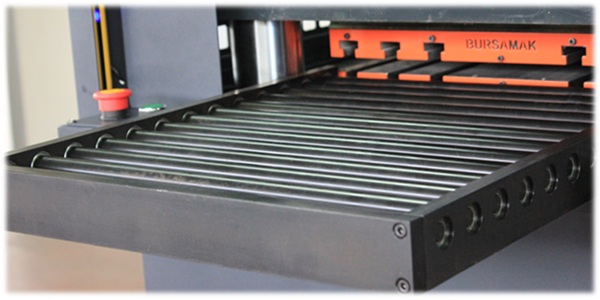

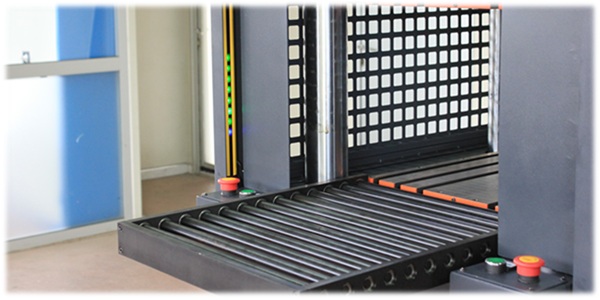

Sliding Front Table

The sliding front stand on our ECO series presses makes it much easier to place and remove molds. It can also be easily removed if desired.

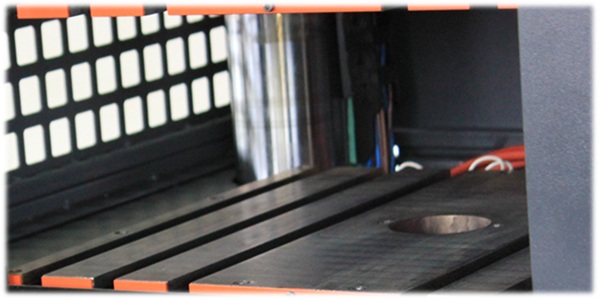

Extractor Mechanism

Rubber Press Pusher Mechanism

The hydraulically operated center ejector allows you to automatically eject products from the mold. This significantly reduces production time and increases production volume.

Hydraulic Oil Cooling Unit

With the oil cooling unit in our presses, the machine automatically cools the hydraulic oil when the temperature exceeds the one you specify, and thus you will not experience any power loss and your felt life will be extended.

Ventilation

Vulcanization Press Ventilation

Harmful gases and excess heat are removed from the operator with the ventilation fans in our presses.

Safety Light Barrier

Vulcanization Press Safety Light Barrier

Possible work accidents are prevented with the light barrier on our presses.

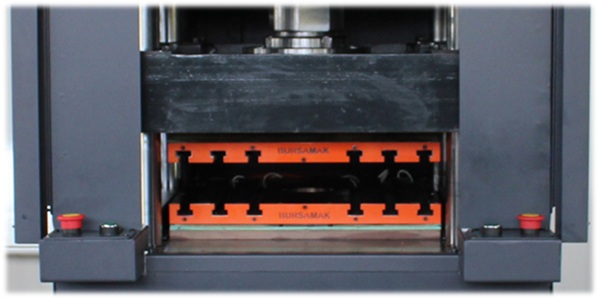

Automatic Degassing

Rubber Press Degassing

You can adjust all degassing parameters in detail on our presses. Degassing frequency, rise distance, hold at top, and re-press parameters are all customizable.

Automatic Operation and Shutdown

Vulcanization Press Automatic Operation

You can pre-set the day and time to ensure the press is preheated and ready for production. You can also set it to automatically shut off at your preferred time if it's not used for an extended period.

Electronic Pressure Monitoring

Our presses constantly monitor pump pressure via a PLC, ensuring the health of the hydraulic system and the press's load status. You can also monitor current pressure values on the screen.

Easy to Use Interface

Although our presses offer a wide range of features and customization options, the main control panel is very simple and self-explanatory. The operator is informed about their actions and the required values are displayed in real time. Values such as temperature and cooking time are easily adjusted.

Easy Access

Our machines' opening covers and wide column spacing make it easy to attach and detach molds. The hydraulic unit and electrical panel are easily accessible by opening the covers. For service and maintenance, easily removable service plates allow access to any location in minutes.

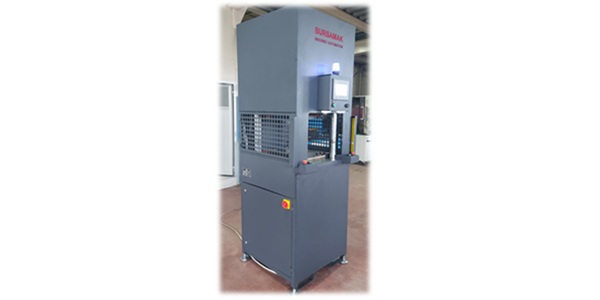

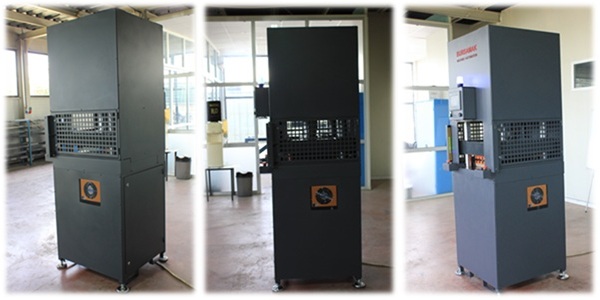

Compact Design

Compact Vulcanization Press

All hydraulic and electrical components of our presses are self-contained, allowing them to take up minimal space in your production area.

Automatic Lubrication

Automatic Lubrication Unit

Our presses feature automatic lubrication to prevent wear on the columns and sliding table. This ensures years of maintenance-free operation.

Mold Parameters Memory

Vulcanization Press Mold Parameters Memory

You can save 1000 molds with their names and all their parameters on our presses. When changing molds, you can adjust all parameters simply by selecting the mold.

Operator Delay Warning

If the operator cannot complete the loading/unloading process within the specified time, an audible and visual warning is given. You can also adjust the audible warning duration.

Heating Technology

Our presses constantly monitor their resistances and relays, alerting the operator in the event of a malfunction. PID heating and optimized parameters maintain the temperature at the desired value with greater precision, ensuring temperature stability.

Shift Production Tracking

Vulcanization Press production shift monitoring

Our presses store production data from the last three months of shifts in their immutable memory. You can access production data retroactively.

Electrical Safety

Vulcanizing Press Electrical Safety

Our presses protect the machine by instantly checking the input voltage and phase direction. Each component is isolated from the system by a separate fuse.

Direct Mold Heating

Our presses can optionally be heated directly by attaching a resistance to the mold. The press automatically monitors the resistance and mold temperature, ensuring you get the best product possible.

Server Connection and Remote Control

Vulcanization Press Server Connection and Remote Control

By connecting our presses to your workplace network, you can transfer live production quantities, machine status, and idle times to any computer or ERP program you use. Optionally, they can communicate with other machines to send and receive commands, and to receive and export data. They can also be controlled remotely via mobile phone, allowing access to all data stored within.

Temperature Statistics of Tables

Our presses record the upper and lower table temperatures for the past hour and present them in a graphical format. You can monitor temperature values minute by minute.

Energy Consumption Tracking

Our presses track their energy consumption and keep a three-month log. This allows you to easily calculate energy consumption per product and calculate your energy costs.

Multilingual Control Panel

Vulcanizing Press Multilingual User Interface

Our presses are loaded with all the required language options based on customer preference. The desired language can be selected and used based on operator preference.


MODEL	Standard Vulcanization Press	ECO Vulcanization Press
Hydraulic Sliding Table	Standard	---
Middle and Side Extractor Mechanism	Option	Option
Hydraulic Oil Cooling Unit	Standard	Standard
Ventilation	Standard	Standard
Safety Light Barrier	Standard	Standard
Automatic Degassing	Standard	Standard
Automatic Operation and Shutdown	Standard	Standard
Electronic Pressure Monitoring	Standard	Standard
Automatic Lubrication	Option	Option
Mold Parameters Memory	Standard	Standard
Operator Delay Warning	Standard	Standard
Heating Technology	Standard	Standard
Shift Production Tracking	Option	Option
Direct Mold Heating	Option	Option
Server Connection and Remote Control	Option	Option
Temperature Statistics of Tables	Standard	Standard
Energy Consumption Tracking	Option	Option
Multilingual Control Panel	Standard	Standard
